Basic Data
Material: SS304&SS316
Working Temperature: -80℃~150℃
Flammability: Fire retardant
Is it UV resistant: Yes

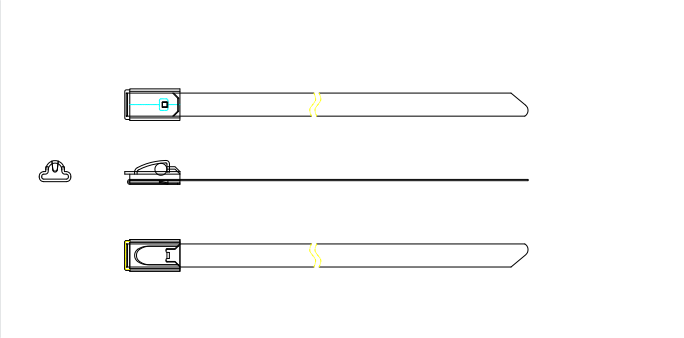

Product description: Metallic tie body with buckle
SPECIFICATION
|
Item |
Specification(mm) |
Max Bundle Dia(mm) |
Thickness(mm) |
Min. Tensile Strength |
|
|
LBS |
KGS |
||||
|
SY2-3-46100 |
4.6 X 100 |
23 |
0.35 |
135 |
60 |
|
SY2-3-46150 |
4.6 X 150 |
38 |
0.35 |
135 |
60 |
|
SY2-3-46200 |
4.6 X 200 |
52 |
0.35 |
135 |
60 |
|
SY2-3-46250 |
4.6 X 250 |
63 |
0.35 |
135 |
60 |
|
SY2-3-46300 |
4.6 X 300 |
82 |
0.35 |
135 |
60 |
|
SY2-3-46350 |
4.6 X 350 |
95 |
0.35 |
135 |
60 |
|
SY2-3-46400 |
4.6 X 400 |
116 |
0.35 |
135 |
60 |
|
SY2-3-46500 |
4.6 X 500 |
125 |
0.35 |
135 |
60 |
|
SY2-3-46600 |
4.6 X 600 |
154 |
0.35 |
135 |
60 |
|
SY2-3-8150 |
8.0 X 150 |
38 |
0.35 |
180 |
80 |
|
SY2-3-8200 |
8.0 X 200 |
52 |
0.35 |
180 |
80 |
|
SY2-3-8250 |
8.0X 250 |
63 |
0.35 |
180 |
80 |
|
SY2-3-8300 |
8.0 X 300 |
82 |
0.35 |
180 |
80 |
|
SY2-3-8350 |
8.0 X 350 |
95 |
0.35 |
180 |
80 |
|
SY2-3-8400 |
8.0 X 400 |
114 |
0.35 |
180 |
80 |
|
SY2-3-8500 |
8.0X 500 |
125 |
0.35 |
180 |
80 |
|
SY2-3-8600 |
8.0 X 600 |
154 |
0.35 |
180 |
80 |
|
SY2-3-12250 |
12 X 250 |
64 |
0.35 |
270 |
120 |
|
SY2-3-12300 |
12X 300 |
82 |
0.35 |
270 |
120 |
|
SY2-3-12400 |
12 X 400 |
110 |
0.35 |
270 |
120 |
|
SY2-3-12500 |
12X 500 |
140 |
0.35 |
270 |
120 |
|
SY2-3-12600 |
12 X 600 |
154 |
0.35 |
270 |
120 |
