Basic Data
Nominal Current Ratings
|
Terminal colour |
Red |
Blue |
Black |
Yellow |
|
Conductor Range(mm²) |
0.5-1.6 |
1.0-2.6 |
2.5-4 |
2.5-6.0 |
|
Ring Terminal |
24A |
32A |
37A |
48A |
|
Forked Spade |
18A |
24A |
30A |
36A |
|
Pin Connector |
12A |
16A |
20A |
24A |
|
Lip/Flat Blade |
24A |
32A |
37A |
48A |
|
Bullet |
12A |
16A |
/ |
24A |
|
In Line Splice |
24A |
32A |
/ |
48A |
|
Quick Connector |
24A |
32A |
/ |
48A |
|
End Connector |
24A |
32A |
/ |
48A |
These ratings are a notional suggestions and cover most situations. It assumes defect-free workmanship, natural ambient conditions.
Stripping Lengths
|
Terminal colour |
Red |
Blue |
Black |
Yellow |
|
Conductor Range (mm²) |
0.5-1.6 |
1.0-2.6 |
2.5-4 |
2.5-6.0 |
|
Strip Length for Terminals |
4-5mm |
5-6mm |
5-6mm |
6-7mm |
|
Strip Length for Line Splice |
7-8mm |
7-8mm |
7-8mm |
7-8mm |
In general, the wire should protrude 1mm out of the front of the terminal
SPECIFICATION
|
|
Single Grip |
Double Grip |
Tab Size |

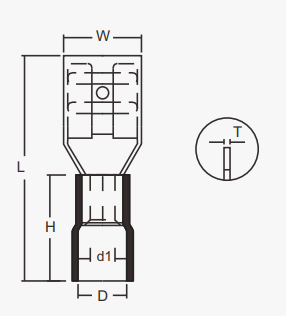

Dimensions |
||
|
W |
L |
T |
||||
|
H=10.0 d1=1.7 D=4 |
FDD1.25-110(5) |
FDG1.25-110(5) |
2.8x0.5 |
3.2 |
18.6 |
0.3 |
|
FDD1.25-110(8) |
FDG1.25-110(8) |
2.8x0.8 |
3.2 |
|||
|
FDD1.25-187(5) |
FDG1.25-187(5) |
4.8x0.5 |
5.0 |
19.0 |
0.4 |
|
|
FDD1.25-187(8) |
FDG1.25-187(8) |
4.8x0.8 |
5.0 |
|||
|
FDD1.25-250 |
FDG1.25-250 |
6.35x0.8 |
6.6 |
20.5 |
0.4 |
|
|
H=10.0 d1=1.7 D=4.5 |
FDD2-110(5) |
FDG2-110(5) |
2.8x0.5 |
3.2 |
18.6 |
0.3 |
|
FDD2-110(8) |
FDG2-110(8) |
2.8x0.8 |
3.2 |
|||
|
FDD2-187(5) |
FDG2-187(5) |
4.8x0.5 |
5.0 |
19.0 |
0.4 |
|
|
FDD2-187(8) |
FDG2-187(8) |
4.8x0.8 |
5.0 |
|||
|
FDD2-250 |
FDG2-250 |
6.35x0.8 |
6.5 |
20.5 |
0.4 |
|
|
H=13.0 d1=3.4 D=5.5 |
FDD5.5-250 |
FDG5.5-250 |
6.35x0.8 |
6.6 |
23.5 |
0.4 |
|
FDD5.5-312 |
FDG5.5-312 |
8.0x0.8 |
9.1 |
26.5 |
0.5 |
|
|
FDD5.5-375 |
FDG5.5-375 |
9.4x1.2 |
10.9 |
28.6 |
0.5 |
|
