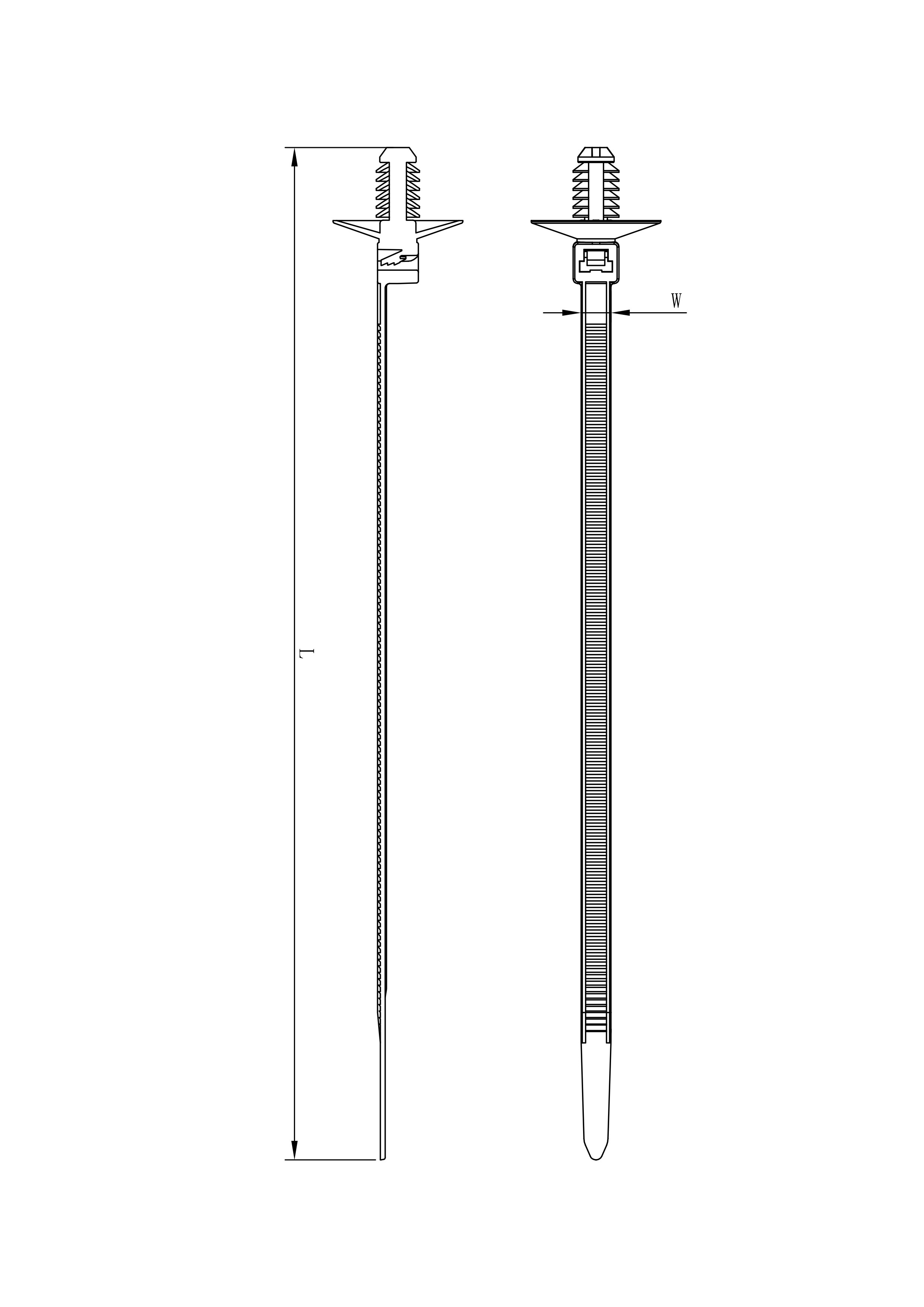

Description: Button style head sits on reverse of panel and allows tie to be secured forming a loop. Allows pipes or cable bundles to be fixed to a panel using a single hole.
Releasable until finally secured.
Min. Loop Tensile Strength: 22kg
| Material | Polyamide 6.6(PA66 HS) |
| Colour | Black |
| Flammability | UL94V-2 |
| Operating Temperature | -40℃ to 105℃ |
| Item No. | Max.Bundle DIA. | Tensile Strength | Hole Dia. | Panel Thickness | |||
| mm | (mm) | (mm) | LBS | KGS | mm | mm | |
| SYE-9-50170 | 170 | 5 | 35 | 50 | 22 | 6.5~7.0 | 0.8~7.0 |
